CPD (Complete Profile Drawer)
In the world of archaeology and artifact preservation, accuracy and efficiency are paramount. Traditional methods of drawing small finds and pottery shards on-site have long been fraught with challenges. Often, it is difficult to create a complete profile due to the lack of the object’s base or the small size of the shards, making it hard to determine their stance using regular methods. Additionally, this process can be exceedingly time-consuming, taking valuable time away from other crucial tasks. Enter the Complete Profile Drawer (CPD), a groundbreaking tool poised to revolutionize the field.
Addressing Long-Standing Challenges
From our extensive experience, we understand the frustrations that come with traditional drawing methods. Drawing small finds and pottery shards accurately on-site can be an arduous task. The CPD addresses these challenges head-on by providing a comprehensive solution that integrates traditional drawing tools with modern mechanical systems. This innovative approach ensures that even the most intricate profiles can be drawn with unparalleled precision in a fraction of the time previously required.
Innovation in Design

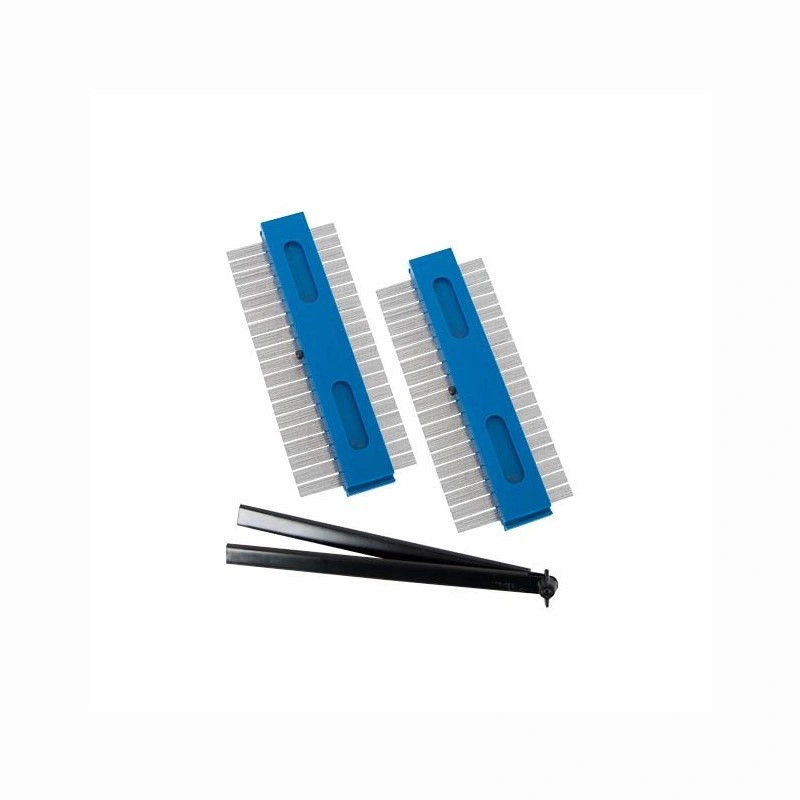

The CPD combines known drawing tools, such as the profile gauge and clamp, with a simple yet effective mechanical movement system. This integration allows for the precise indication of profiles or sections in just 2 to 3 minutes, compared to the 15 to 25 minutes typically needed, depending on the complexity of the object. Essentially, the CPD provides the user with the equivalent of three or four hands working simultaneously, streamlining the drawing process and significantly reducing the potential for human error.
Securing Precision and Protecting Artifacts
One of the standout features of the CPD is its use of mechanical movements and locks to secure the profile gauges in place. This ensures that once the gauges are set, they remain in position, preventing any shifts that could compromise the accuracy of the drawing. Additionally, this system helps to avoid scratching or damaging the object, a critical consideration when working with valuable or delicate artifacts.
Versatile and User-Friendly
Every component of the CPD has been meticulously designed to serve the mechanical movement, making it a versatile tool suitable for any work environment. It requires no special conditions or electrical power, allowing for its use in a wide range of settings. The four sides of the profile gauges ensure a complete and precise drawing of the object’s profile, even when multiple sides need to be captured. This comprehensive coverage is particularly beneficial for drawing complex pottery shard rims from three sides, capturing every tiny detail in a very short time.
Expanding Capabilities
The CPD’s design includes clamps to hold objects securely, with the ability to accommodate varying widths. Additionally, the drawing space can be extended by attaching another two profile gauges, effectively doubling the length and eliminating the need for separate profile drawings to be joined together. This expansion capability further enhances the tool’s efficiency and flexibility.
Moving to Production
With the prototype stage successfully completed, we are excited to move into production. The estimated cost of the CPD will be between 175 and 225 $ (All parts are included). I invite interested parties to send me their requests, including your name, affiliations, and the number of units needed (in case you need more than one). This will help me estimate the total cost and ensure that I can meet demand effectively. I also encourage sharing this information within your networks to reach as many people as possible.
Invitation for Feedback
We welcome any suggestions, comments, queries, or feedback about the CPD to help improve its performance further. Your insights are invaluable as we strive to create the next generation of drawing tools that will set new standards in the field.
The Complete Profile Drawer represents a significant leap forward in archaeological drawing tools, marking the first step towards a new generation of precision and efficiency. By addressing long-standing challenges and integrating innovative design features, the CPD is set to become an indispensable tool for professionals in the field. I look forward to your support and feedback as we embark on this exciting journey.
